NX9000/2/10 2 CAR DIGITAL RACE TEAM RADIO SYSTEM

NX9300/2/10 Advanced DIGITAL RACE CAR RADIO SYSTEM

Complete Team System for 2 Cars

CALL FOR OUR LATEST DEALS AND RENTAL OPTIONS

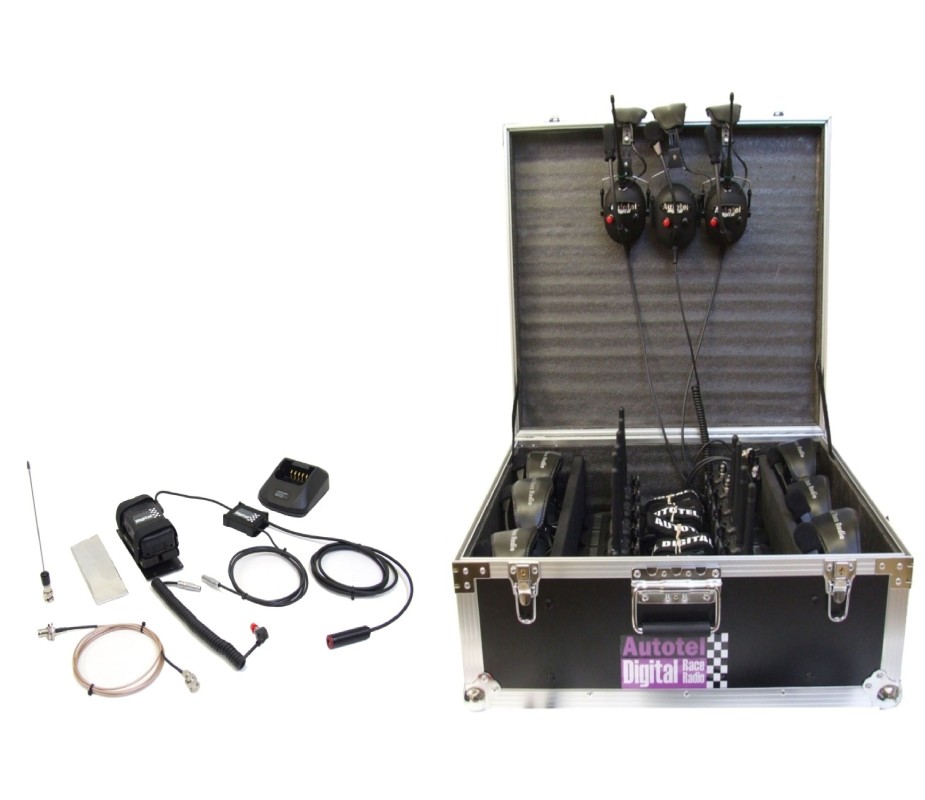

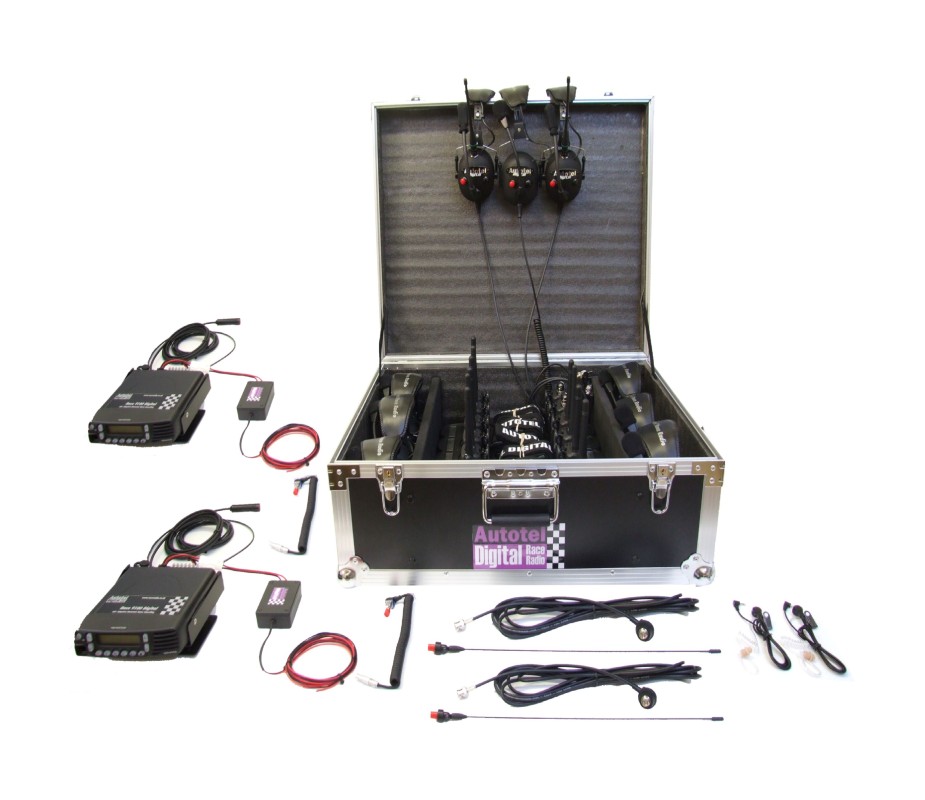

Complete Digital System for 2 x cars, 2 x race engineers, 1 dual radio manager set, 4 x full pit crew with headsets and 2 pit crew with earpieces/microphones.

This complete package will fit out your race team with a turnkey digital solution. It includes 2 engineer 2-button pit sets, 1 x manager pit set with dual radios and 4 crew sets, plus 2 x GT/Saloon/Sportscar radio systems for your cars. It is supplied with bank charging and custom-made flight cases, making it a neat and ready-to-use package. The range on a digital system using the elevated race engineer headset is adequate for many applications, but a repeater option can be added to ensure full track coverage on larger tracks.

Car Radio Options

• NX9300: GT saloon car High power radio, 12 volt
• NX9003: Lightweight Battery Powered for Single seater
• NX9003+: Lightweight 12 Volt Powered Radio for all Race applications

Key Features

• DSP4 Noise cancelling fitted as standard
• Elevated Range extending Antenna on Engineer Pit set
• High quality Helmet Kit and Generic Drivers earpieces included
• Optional repeater for full track coverage on larger circuits

Car System

Car System

The new Autotel NX9000DSP series offers advanced digital communications systems for all types of racecars. 12 volt powered radio options make it ideal for endurance racing. The special car radio packs and looms are fitted with our adaptive DSP4 digital noise cancelling to give the best possible communications in all applications. The system is compatible with our new DSP4 Microphone technology intended for very high noise applications, as well as being backwardly compatible with most conventional Dynamic microphones supplied by Autotel, MRTC, Stilo, Bell and Sparco.

The system is complete and will give better range than the equivalent analogue system in a race car situation. Improvements of 30% increase in range have been found in some applications over conventional analogue. Our RR4000S Digital repeater can be added to guarantee full track coverage on virtually any track**

The System is based around the latest Kenwood NX3000 series radio units that have improved noise capabilities and better resistance to water. The handsets having IP67 capabilities.

NX9000 DSP Key Benefits

Car and Pit calls can be monitored without scanning... No more lost first words from slow scanning

Secure, digital conversations... No more eavesdropping

Clear, crisp, digital conversation... Consistent voice quality and volume

Inherent digital noise cancelling enhanced with our DSP4 adaptive noise cancelling... Ideal for high noise applications

High Level of immunity to interference... Digital radio is far less likely to be affected by pit lane interference

Improved range... Narrow band digital radio NXDN gives a better usable range than analogue systems and is also more immune to high vehicle electrical interference that often reduces range.

System Components

• 2 x NX9000 series digital car system including DSP noise cancelling and all car installation parts
• 2 x NX911ES Race engineer pit set with 2 button pit car facility and rapid charger (including elevated pit set antenna)
• 1 x NX931DS Dual radio 4 button team mangager pit set.
• 4 x NX911 Pit crew sets with race headsets
• 2 x NX901 Pit crew sets with ear pieces
• 9 x Crew belts
• 2 x 6 bank fast charger
• 2 x Custom made flight case

OPTIONS

NX4000S repeater with RR96 antenna and cable, full range of pit sets to expand the system.

** Range will depend on terrain and antenna height.
