Basic mission control system POC

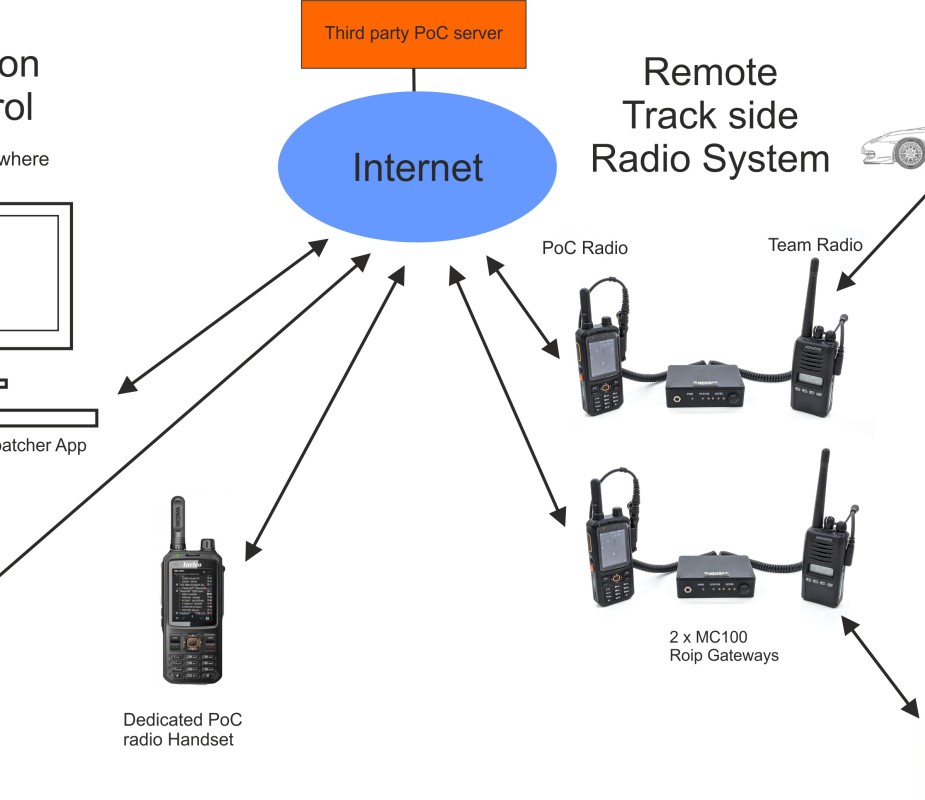

The MC100 system, is a basic RoiP Gateway Interface between a single radio channel to a PTT over cellular radio network. The interface provide 2 way voice communication in and out of the remote radio system, into A PTT over Cellular (POC) system. The POC radio system, can have devices located anywhere Globally that hasd 3G 4G or internet access. The system can be accesses by hand held POC radio devices, Mobile phones running a POC app or Desktop computers running  dispatcher App.

The MC100 relies on the voice message activating the relay to and from the POC service so there can be  small delay in in the system activating.

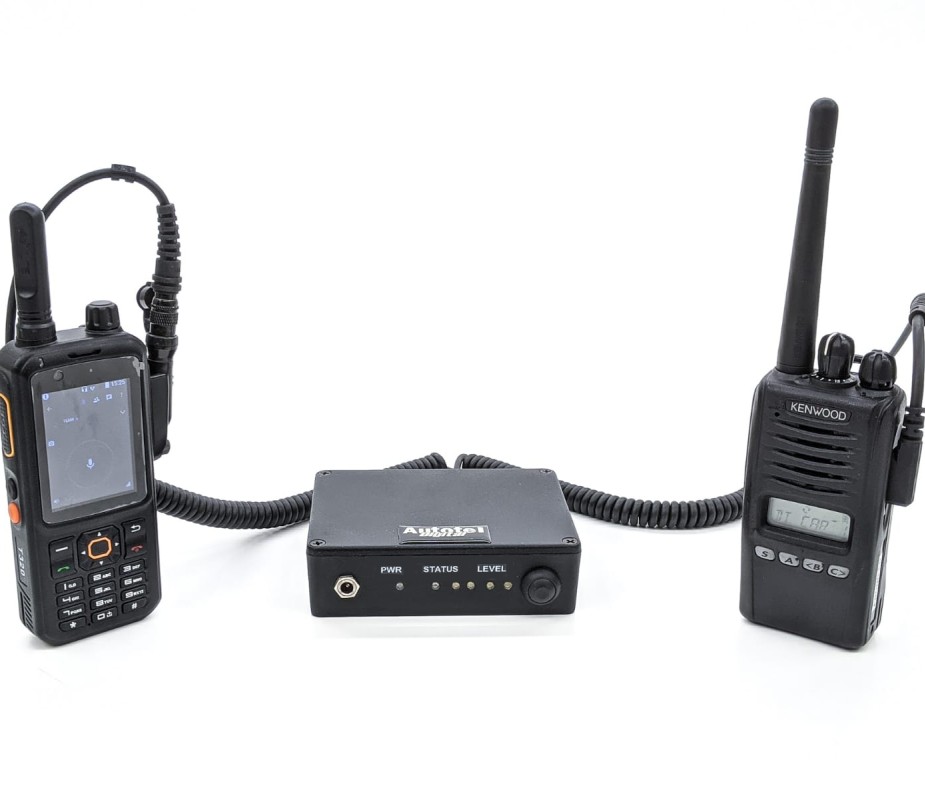

The interface has its own re-chargeable battery pack, or a permanent mains power unit, the radio connectors for the Radio system are interchangeable, making it compatible with a wide range of radio and POC systems.

The system works on a single radio channel, multiple channels can be controlled by adding multiple MC100 gateways and controlling POC radio units on the same POC network but with different POC IDs.
