Pit Wall Intercom MS51

All Prices Exclude VAT

The MS51 is a high performance wireless pit intercom system with interface to a conventional radio link or Ptt over cellular link to the race car. Belt packs have a range of up to 400 meters from the base antenna unit, and a capacity of up to 8 devices Per base.

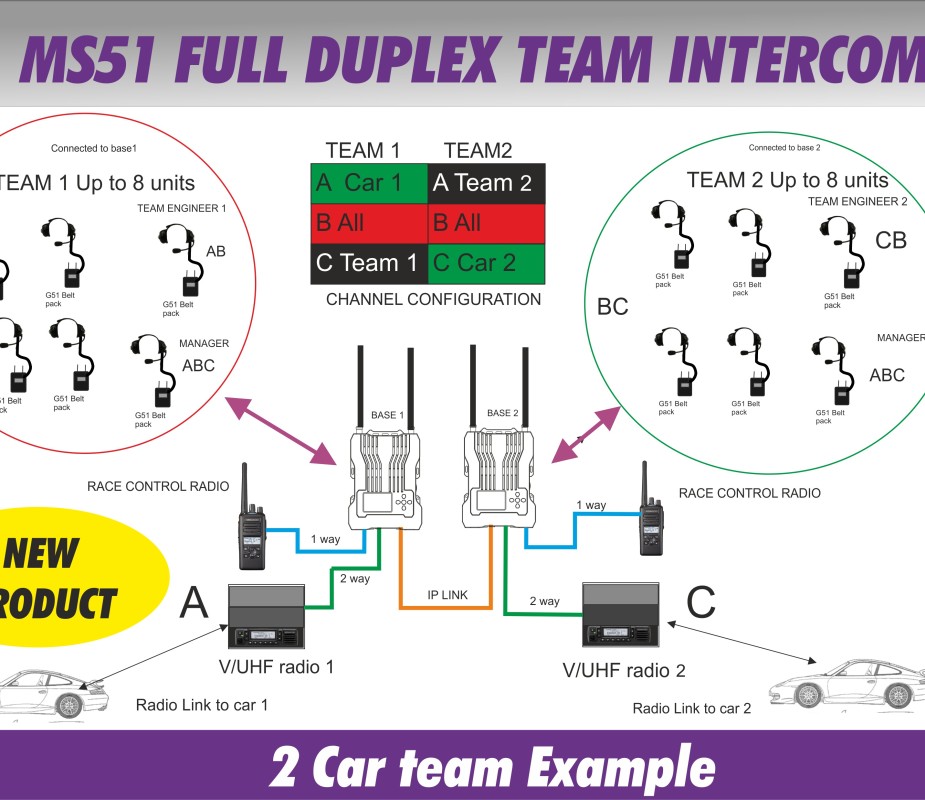

• base units can be daisy chained to expand capacity  and/or configure a 2 car system.
• Digital noise cancelation on belt packs when used with

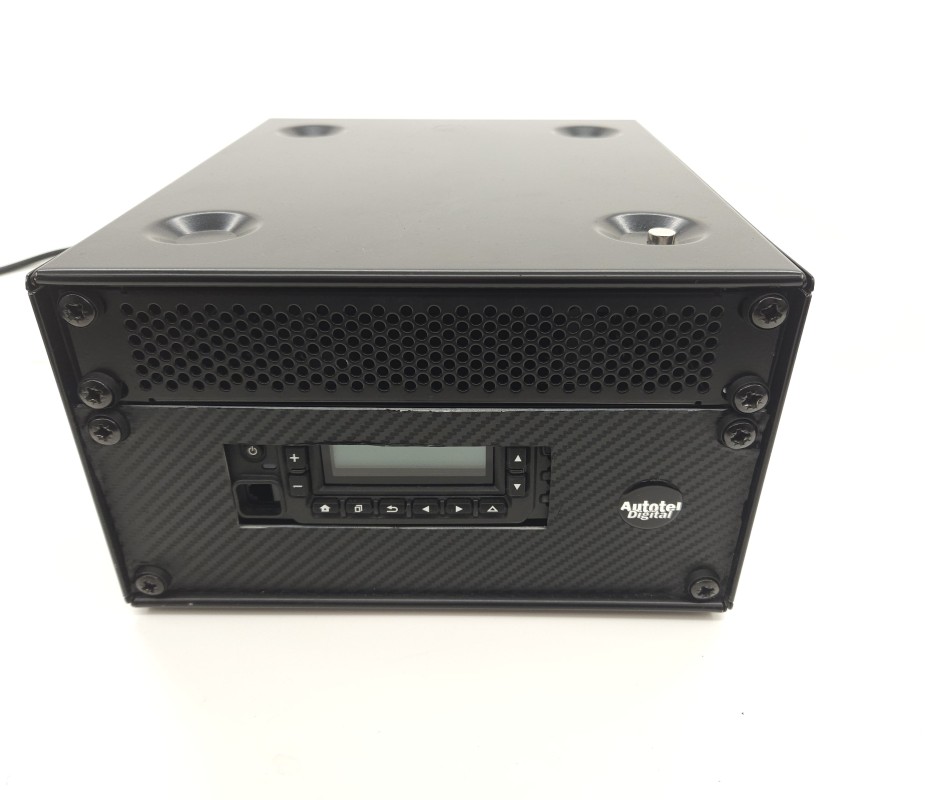

• Radio/PoC interface unit for connection to car radio

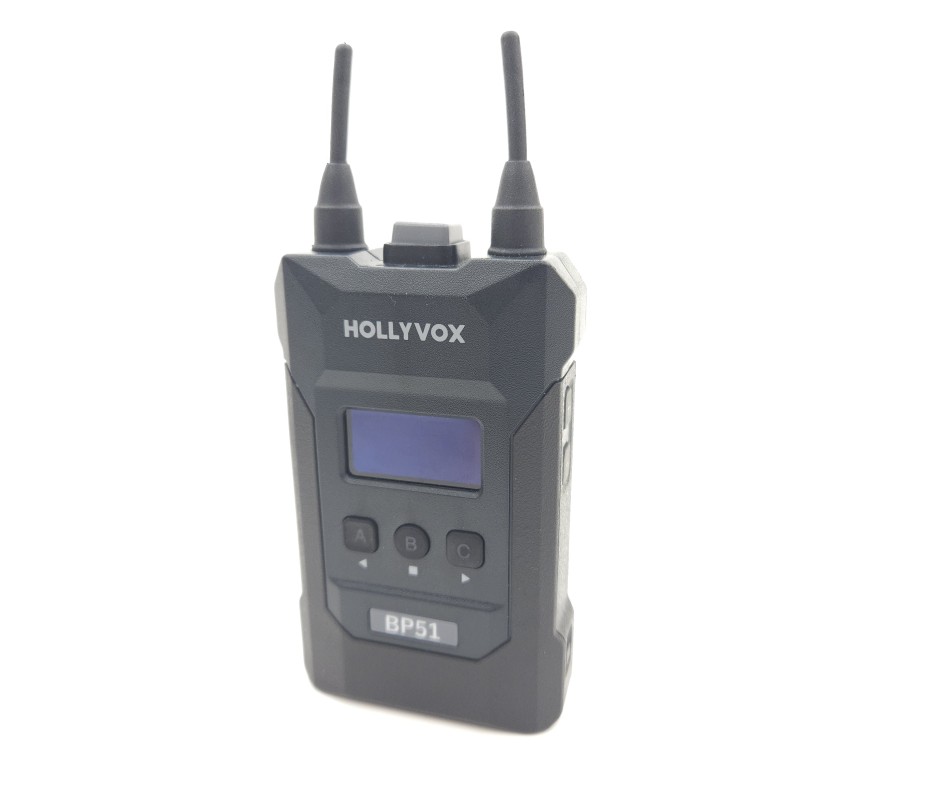

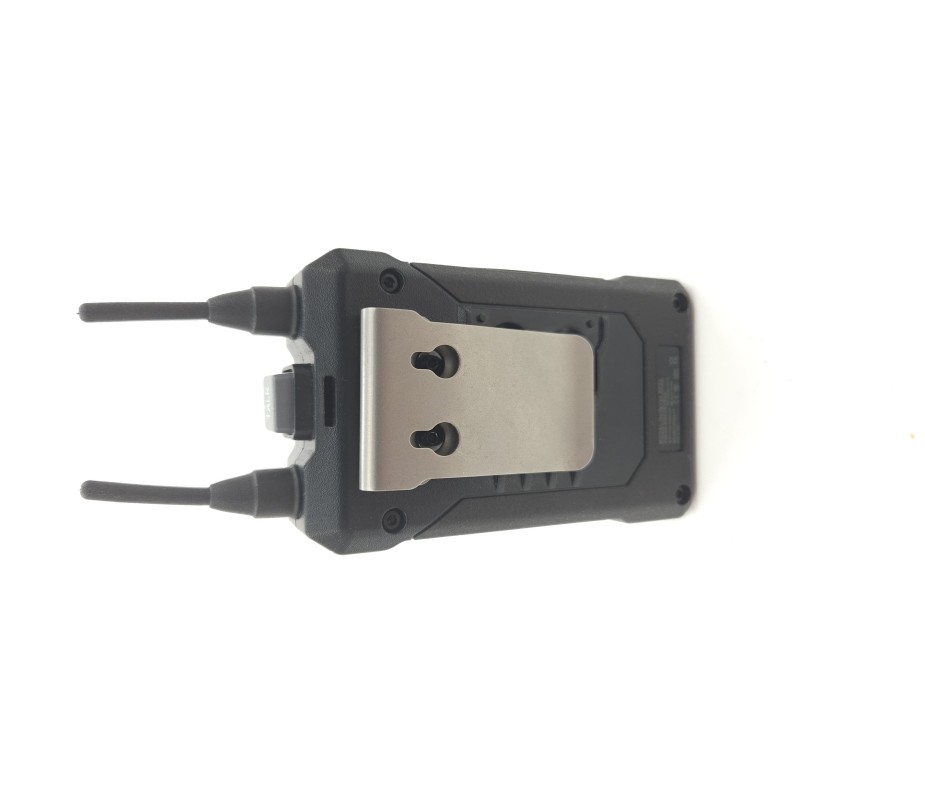

• High performance wireless intercom compact belt packs.
• Belt packs have a 3 channel capacity.
• 1900Mhz channel hopping technology for channel efficiency and reduction of interference.
• Radio interface for Race control can be allocated to a specific intercom channel. for all users to hear
• Fully Expandable to a large multi car team system

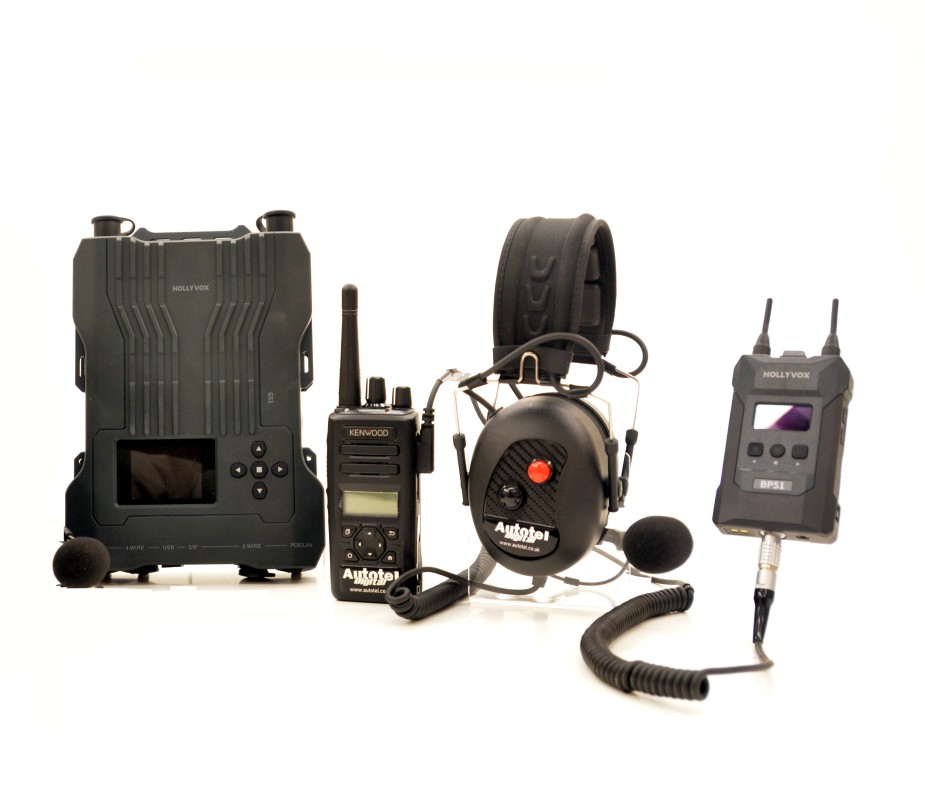

• can operate as a stand alone system with radio interface to car or Integrate with existing team radio headsets as a hybrid intercom/radio system.

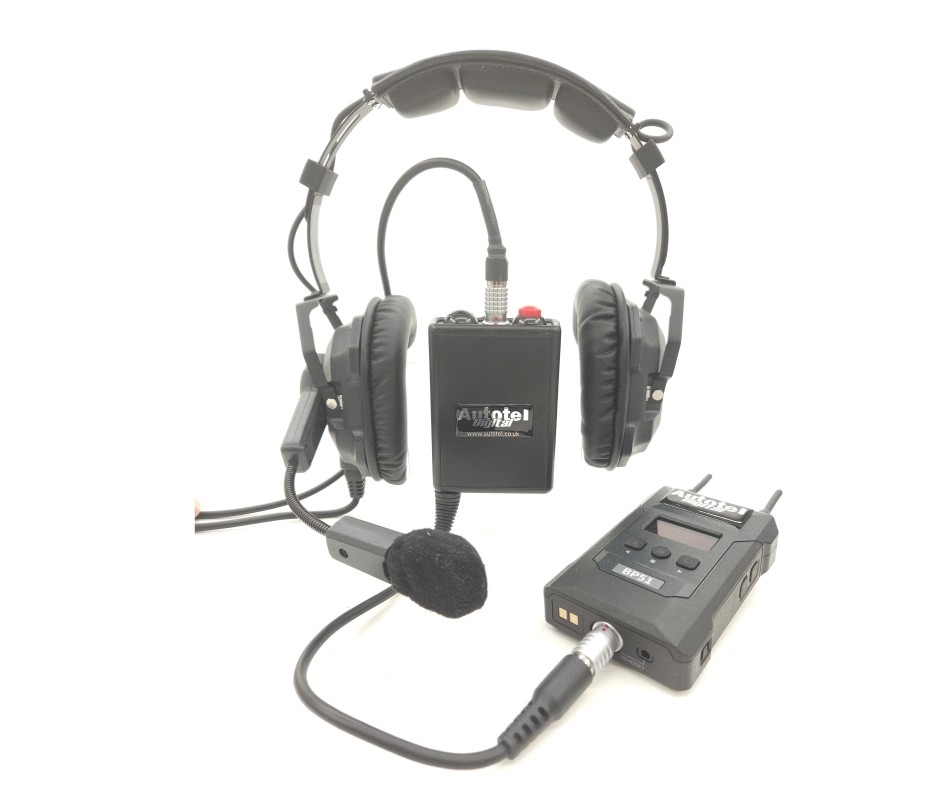

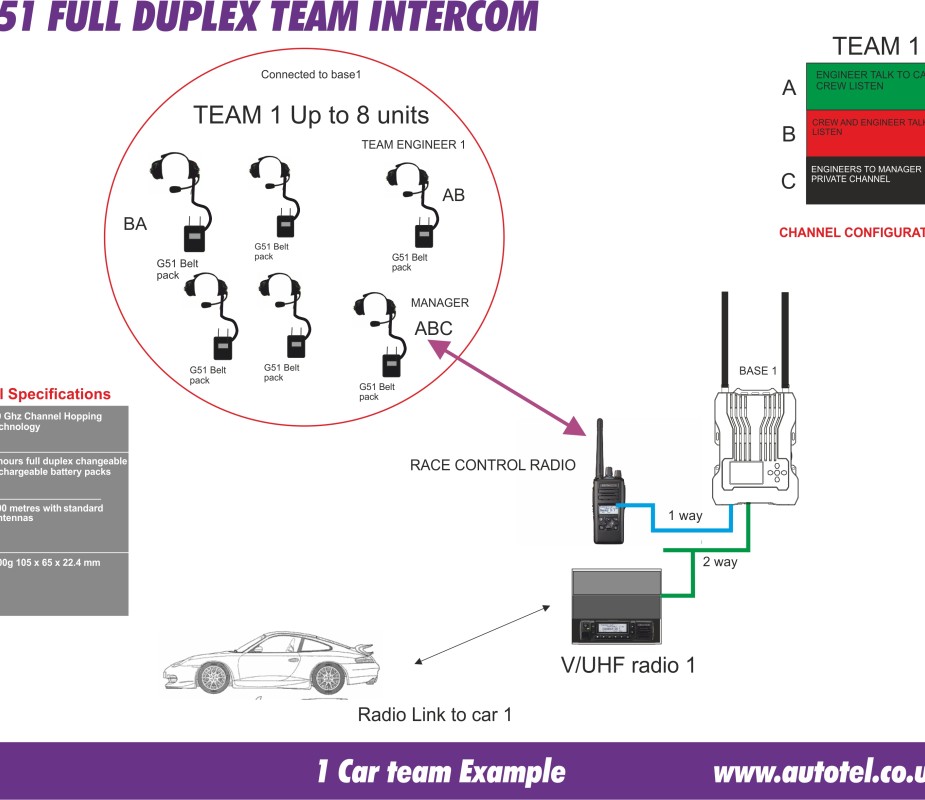

STAND ALONE MODE with radio interface

Users only have intercom packs., Engineers and managers have radio belt packs that patch calls  to the cars.

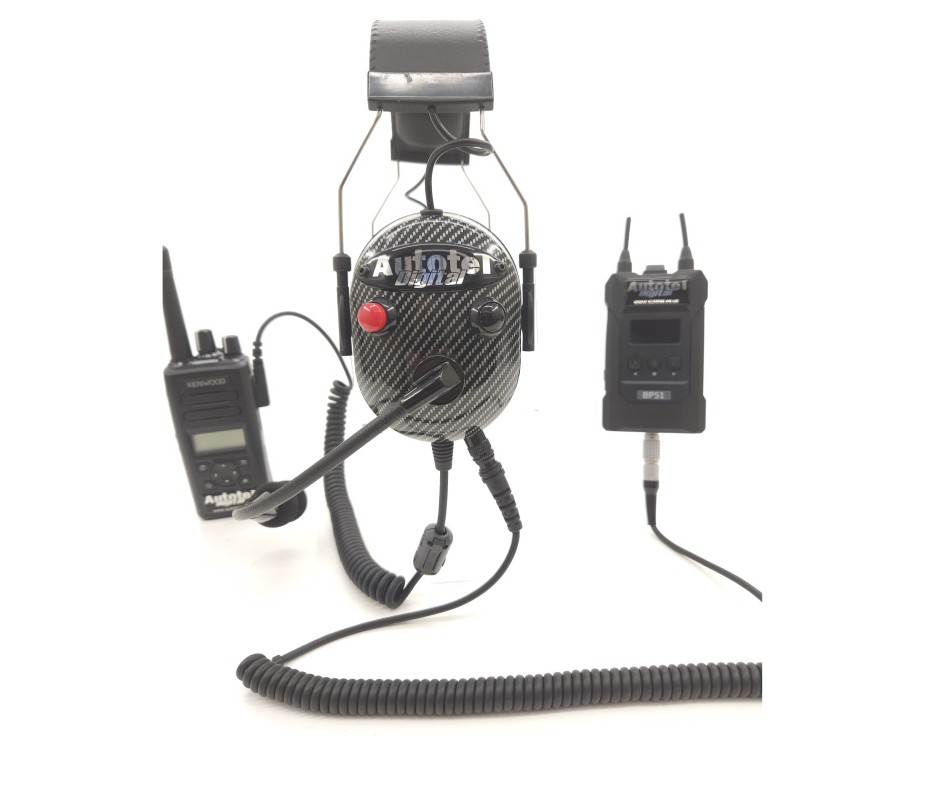

HYBRID MODE

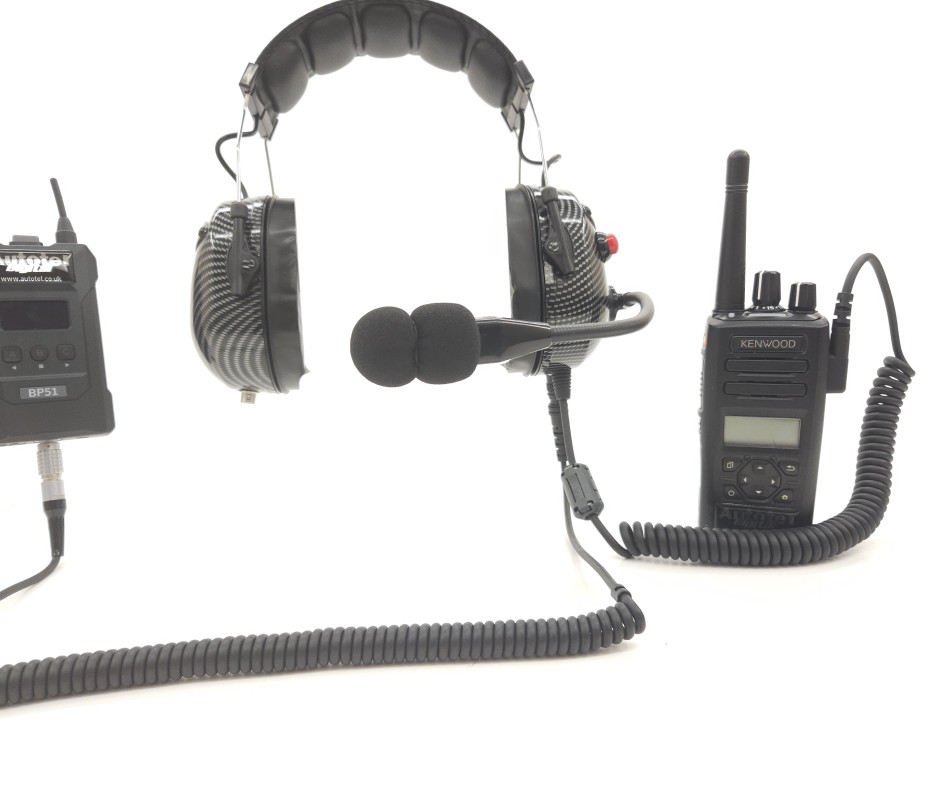

Users have headsets with an intercom pack and a conventional radio connected, radio system operates as normal, intercom is independent. Race control can be fed into intercom system.

MIXED MODE

Similar to stand alone mode but some crew can have listen only conventional radio packs and can hear selected conversations.

PLEASE CALL FOR PRICE
