RACE 470 PTT over Cellular Race car system
NO LICENCE REQUIRED SHORT OR LONG RANGE USE 3G and 4G
NOW SUPPLIED INCLUDING UK & EU ROAMING SIM CARDS and POC SERVER ACCESS FOR YOUR FIRST YEAR
Now with 2 button PIT/CAR option on headset.
Our
NEW Race 470 uses PTT over Cellular technology to give licence free Race
Communications over short or long range in the UK and Europe or worldwide*. It
is ideal for circuit use as well as rally and long range road
applications. The system uses the Data capability of 3G and 4G Mobile
Phone networks to transmit voice communications.
PTT
over Cellular sends each individual call as a small data package so only data
is used when you talk. This eliminates the need for a constant phone connection
during use, as found on other mobile phone, based systems.
The System uses DATA only and uses our Multi network SIMs, that give Data connectivity in The UK and Europe and USA. Our SIM's also Roam between the main 3 networks in the UK and 88 different networks in Europe. The system will come pre configures with our SIM that gives a data allowance each month for the first year of operation, Sims can then either replaced with other sim cards or topped up for a further year. Typical top up for these Sims is around £40 for the year.
If you travel outside Europe we can provide connectivity Worldwide, by adding a suitable Sim card in the devices second Sim card slot.
Range is only limited by the availability of a suitable Mobile network so units can be 100s or even 1000s of Km apart.
No
radio license is needed making it ideal for use when abroad in Europe, even worldwide*
if the SIM is suitable. The system can also be used at places where the use of
radio is restricted.
*USA
use may be limited to a single network require different hardware. Countries outside Europe UK and USA will requite different data sims to work.
KEY ADVANTAGES OF OUR RACE 470 SYSTEM
1) No radio license needed
Expandable to larger team system with 2 button Engineer pit sets and Manager dual radio pit sets.
Large Display Radio Units show Network status call History* with message playback.
2) Range
only limited by Mobile network availability.
3) High level of Inherent noise cancelling & the option of adding our adaptive DSP noise cancelling for very high noise applications.
4) Expandable
to link to conventional radio equipment.
12 Battery or 12 volt powered with with up o 24 hours backup from battery
7) Highly
secure for private communications.
8) Dedicated radio units that are simple to use.
*Retained Message history is a paid option.
SYSTEM COMPONENTS
Basic system
12 volt powered Race 470 car radio with AV
mount (with Battery only capability up to 24 hours)
Car loom with quick release helmet connector
Steering wheel PTT switch
Car Antenna

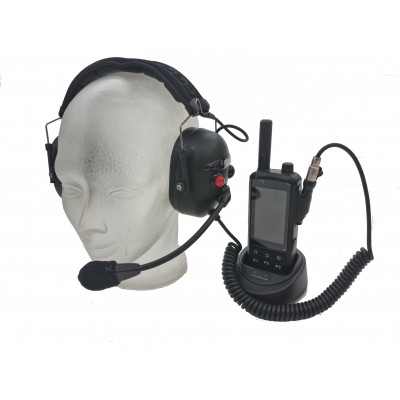

Pit radio unit with race Headset
1 x single Radio charger
Drivers helmet Kit (Optional)
Drivers in ear earpieces (Optional)
Storage case
Power filter
Race 470 12 volt car radio with AV mount
Car loom with quick release helmet connector and DSP noise cancelling system.
12 volt power system to run car and DSP
Steering wheel PTT switch
Car Antenna
Pit radio unit with race Headset
2 x single Radio charger
Drivers helmet Kit (optional)
Drivers in ear earpieces (optional)
Storage case
1) RUNNING COSTS
The system is supplied with Pre fitted and configured multi network UK & EU roaming Sim card that last for 1 year, the data allowance on these cards is adequate for POC use in motorsport, data usage is aggregated over the number of devices to maker the best use of all the Data
allowance. If the cards are used for other applications ie (removed from the POC device and installed into a phone then extra data used will be charged for)POC systems require a POC server to operate we supply the system with 1 year access to a POC server. after the first year expires you have the option to continue paying annually, the current annual sim card and server access cost is £160 per year per device. Quantity discount is available for users with over 10 Sim cards.
LIMITATIONS OF USE
The
system is totally dependent Network coverage in the area of use.
The
system will work on 3G or 4G Mobile networks, Good 3G or 4G coverage in the
area of use is essential this will ensure reliable and consistent
communications.
The
system may have some latency (Delay on messages) for subscription servers
typical delays are less than 0.5 seconds for 4G and less than 0.6 seconds for
3G connections. Poor or no cellular coverage may introduce longer delays but as
soon as good coverage is obtained the message is heard. This applies even if
the car loses signal for longer periods due to bad coverage. Free servers can
give a larger delay due to heavy usage, we always recommend using a paid server
to minimize latency.
For
best results we supply our systems on a paid data server, the data server is a
service relays the data packets from one device to another. Paid data servers
are both quicker in relaying data and do not suffer from congestion at busy
times. Our systems are supplied on a pre paid 1 year high
quality server subscription service, the system will be supplied and configured on this service.
POC
radio used with our subscription service can be configured to multiple car
multiple crew applications, the online control panel allows us to create
multiple channels and user groups. It is possible to restrict cars, so they
only talk to a single engineer or multiple engineers in the pits.
Addition
of the PC based dispatcher console allows one or more pit based engineer to
control multiple cars, calls from multiple cars are stacked, so the next
available engineer can accept the next call in the que, other PC based
dispatchers can see who has taken the call, and go on to deal with the next car
call.
This
system can allow any number of cars to be controlled by a few Pit based Dispatchers.
All calls are logged, and the message recorded, for playback at any time.
Longer term message storage is also available should you wish.
Remote
Use
As
the system is network based, so there is no restriction on where it can be
accessed. Users can log into the system using compatible devices from anywhere
there is Cellular coverage or internet connection. This means a team manager
engineer or support supplier can talk directly with team or car from anywhere.
Race 470 PTT over Cellular system POC
- Brands Autotel
- Product Code: Race 470
- Availability: In Stock
-
£1,495.00
