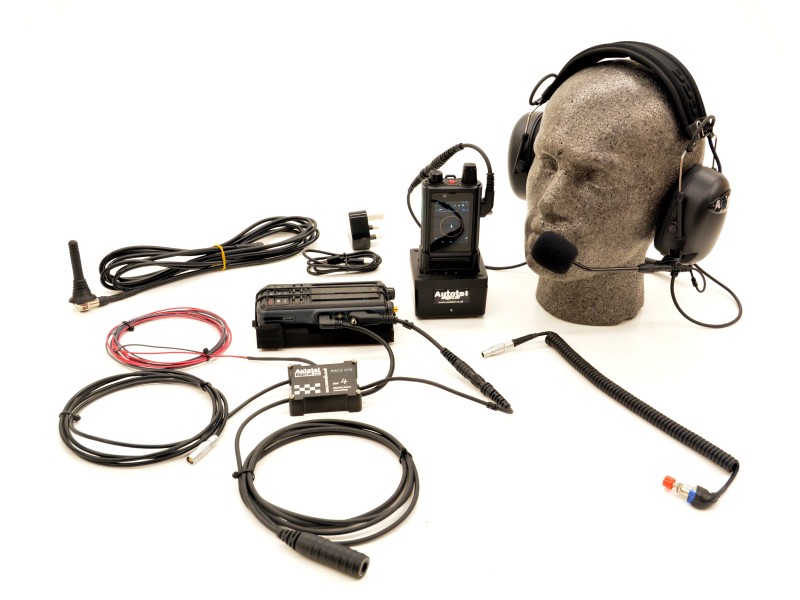

SYSTEM COMPONENTS
Base system

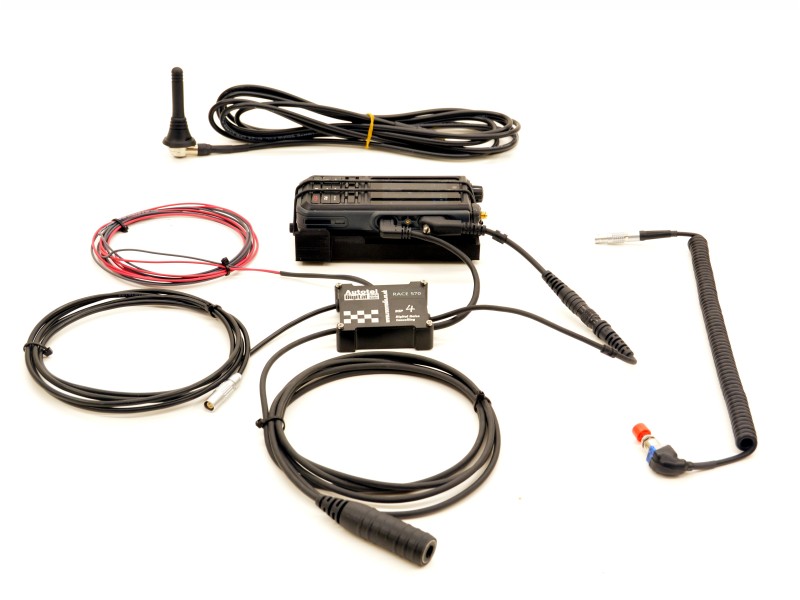

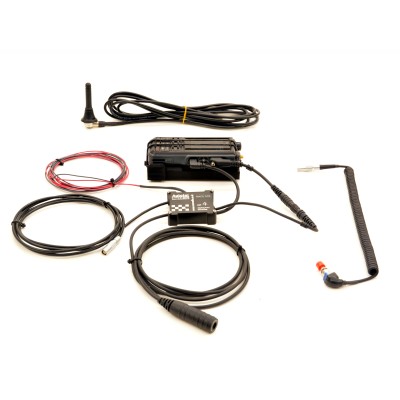

12 volt powered Race 470 car radio with AV mount (with Battery only capability up to 24 hours)
Car loom with quick release helmet connector
Steering wheel PTT switch
Car Antenna

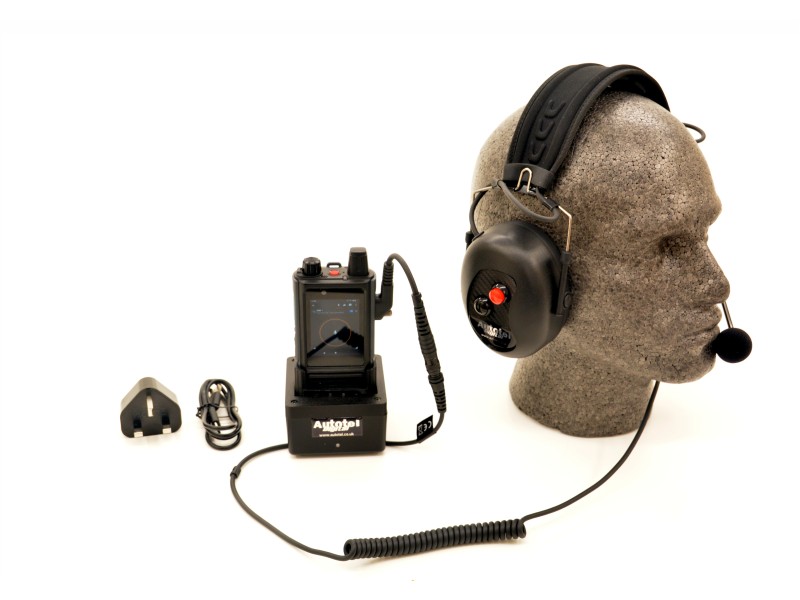

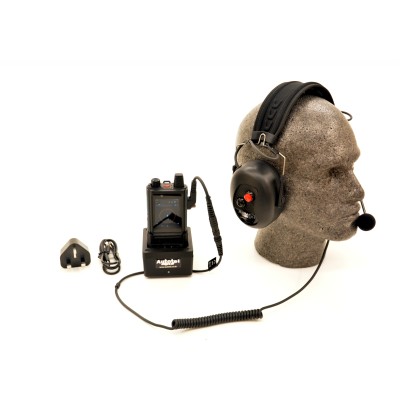

Pit radio unit with race Headset
2 x single Radio chargers
Drivers helmet Kit (Optional)
Drivers in ear earpieces (Optional)
Storage case
Power filter
DSP System (DSP noise cancelling is only needed in extreme high noise situations)
The DSP system includes the following additional components
Car loom with quick release helmet connector and DSP noise cancelling system.
12 volt power system to run car and DSP
RUNNING COSTS
ALL SIM CARD DATA AND SERVER COSTS ARE INCLUDED FOR THE FIRST YEAR OF USE
The system will come pre configures with our roaming SIM cards with enough Data for the heaviest of users. This is inclusive for the first year of operation, Sims can then either replaced with other sim cards or topped up for a further year. Typical top up for these Sims is around £40 for the year.
The data allowance on these cards is adequate for POC use in motorsport, data usage is aggregated over the number of devices to maker the best use of all the Data allowance. If the cards are used for other applications ie (removed from the POC device and installed into a phone then extra data used will be charged for)
POC systems require a POC server to operate we supply the system with 1 year access to a POC server. after the first year expires you have the option to continue paying annually, the current annual server access cost is £120 per year per device. Quantity discount is available for users with over 10 devices.
RACE 570 5G PTT over Cellular Race car system
NO LICENCE REQUIRED
FASTER CALL CONNECTION WITH LESS LATENCY OVER 4 & 5G LTE
NOW SUPPLIED INCLUDING UK & EU ROAMING SIM CARDS AL DATA & POC SERVER ACCESS FOR YOUR FIRST YEAR
NOW WITH 1,2 or 3 HEADSET MOUNTED TALK BUTTONS FOR INSTANT USER CONTACT
Our New Race 470 uses PTT over Cellular technology to give licence free Race Communications over short or long range in the UK and Europe or worldwide*. It is ideal for circuit use as well as long range applications. The system uses the Data capability of 4 & 5G Mobile Phone networks to transmit voice communications.
PTT over Cellular sends each individual call as a small data package so only data is used when you talk. This eliminates the need for a constant phone connection during use, as found on other mobile phone, based systems.
The System uses DATA only and uses our Multi network SIMs, that give Data connectivity in The UK and Europe. Our SIM's also Roam between the main 3 networks in the UK and 88 different networks in Europe.
If you travel outside Europe we can provide connectivity Worldwide, by adding a suitable Sim card in the devices second Sim card slot.
Range is only limited by the availability of a suitable Mobile network so units can be 100s or even 1000s of Km apart.
No radio license is needed making it ideal for use when abroad in Europe, even worldwide* if the SIM is suitable. The system can also be used at places where the use of radio is restricted.
*USA use may be limited to a single network require different hardware. Countries outside Europe UK and USA will requite different data sims to work.
KEY ADVANTAGES OF OUR RACE 570 SYSTEM
Fast reliable messages over 5G networks
No radio license needed, with all running costs included for first year.
Expandable to larger team system with 2 & 3 button Engineer pit sets and Manager dual radio pit sets.
Large Display Radio Units show Network status call History* with message playback.
2) Range only limited by Mobile network availability.
3) High level of Inherent noise cancelling & the option of adding our adaptive DSP noise cancelling for very high noise applications.
4) Expandable to link to conventional radio equipment.
12 Battery or 12 volt powered with with up o 24 hours backup from battery
7) Highly secure for private communications.
8) Dedicated radio units that are simple to use.
*Retained Message history over 24 hours is a paid option.
Expansion for larger team systems
POC radio used with our subscription service can be configured to multiple car multiple crew applications, the online control panel allows us to create multiple channels and user groups. It is possible to restrict cars, so they only talk to a single engineer or multiple engineers in the pits.
Addition of the PC based dispatcher console allows one or more pit based engineer to control multiple cars, calls from multiple cars are stacked, so the next available engineer can accept the next call in the que, other PC based dispatchers can see who has taken the call, and go on to deal with the next car call.
This system can allow any number of cars to be controlled by a few Pit based Dispatchers. All calls are logged, and the message recorded, for playback at any time. Longer term message storage is also available should you wish.
Remote Use
As the system is network based, so there is no restriction on where it can be accessed. Users can log into the system using compatible devices from anywhere there is Cellular coverage or internet connection. This means a team manager engineer or support supplier can talk directly with team or car from anywhere.
LIMITATIONS OF USE
The system is totally dependent Network coverage in the area of use.
The system works on 4 & 5G Mobile networks, Good 4 or 5G coverage in the area of use is essential this will ensure reliable and consistent communications.
The system may have some latency (Delay on messages) for subscription servers typical delays are less than 0.5 seconds for 4G. Poor or no cellular coverage and very congested networks may introduce longer delays but as soon as good coverage is obtained the message is heard. This applies even if the car loses signal for longer periods due to bad coverage.
Race 570 5G PTT over Cellular (POC)
- Brands Autotel
- Product Code: Race 570
- Availability: In Stock
-
£1,995.00
